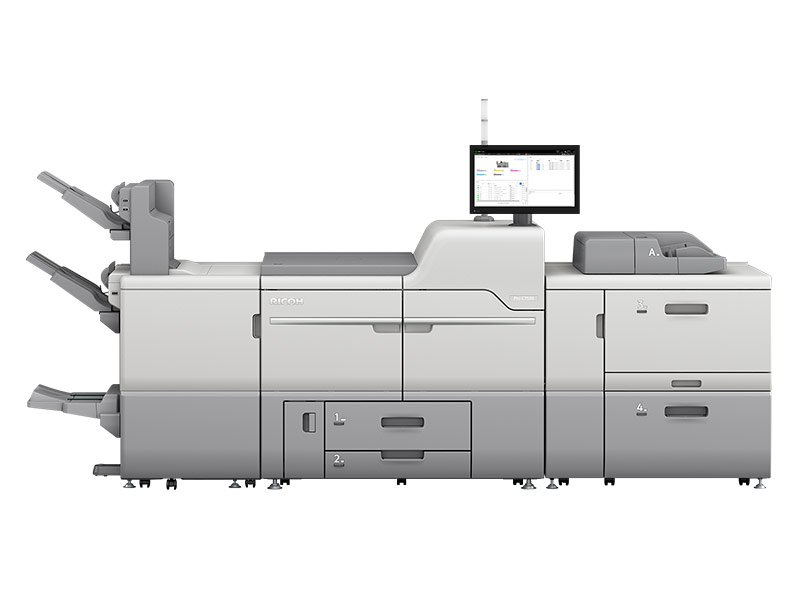

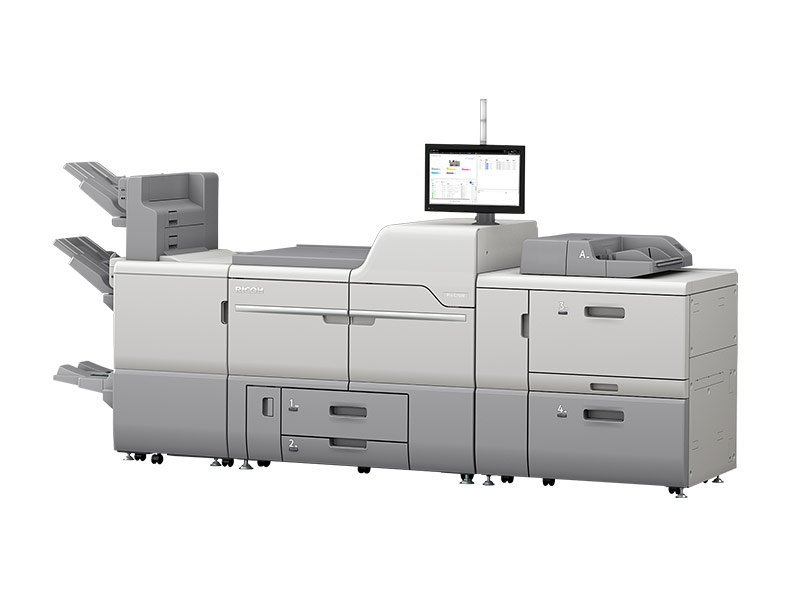

Pro C7500

The Pro C7500 is a medium volume digital colour production printer.

It comes with a base print speed of 85 ppm that can be upgraded to 95 ppm by purchasing an optional productivity upgrade unit.

Additionally, its standard 4-station toner configuration can be upgraded to include a 5th station for special colour printing. A choice of clear, white, neon yellow, neon pink, invisible red, silver, or gold toner is available for the 5-station configuration.

The Pro C7500 comes with the RICOH GC OS controller that is specially designed for commercial printing environments and can be utilised with the Color Controller N-50A or Color Controller N-70A mandatory options.

An EFI 5th Station Hardware Upgrade Kit is required to activate the special colour features on these optional controllers if customers choose the 5-station configuration.

Other notable features are a larger 21.5” operation panel, 40–470 g/m² paper handling, up to 960 mm continuous duplex banner sheet printing, and support for new options such as an improved vacuum-feed LCT and multi-folding unit.

Specification

Environmental features

Power source	220–240 V, 16 A, 50/60 Hz
Power consumption	4,800 W or less—maximum power 35 W or less—Energy Saver Mode (Sleep Mode)
Power consumption—options	1,000 W or less—4,400-sheet Vacuum-Feed LCIT RT5150 200 W or less—Buffer Pass Unit Type S9 60 W or less—Multi-Folding Unit FD5030 150 W or less—Finisher SR5110 150 W or less—Booklet Finisher SR5120 250 W or less, maximum—Trimmer Unit TR5050 75 W or less, average—Trimmer Unit TR5050 110 W excluding peak consumption—Cover Interposer CI5040
Warm-up time	300 seconds or less Note:Based on 23C˚, rated voltage, and full options.
Sound power level	Mainframe 58.5 dB or less—standby 78.5 dB or less—operating System 61 dB or less—standby, 85 ppm 64 dB or less—standby, 95 ppm 81.5 dB or less—operating
Reduction of environmentally sensitive materials	RoHS Less than 0.1 wt%—Lead, PVC, Hexavalent chromium, Cadmium, PBB/PBDE, DEHP, DBP, BBP, DIBP
Energy saving standards	Energy Star 3.2—with OneDFE controller
Safety standards	EN60950-1 IEC60950-1 KC 62368-1 CNS 15998-1
Electromagnetic Compatibility (EMC) standards	EN55032 Class A EN61000-3-2 EN61000-3-3 EN55035 EN62311 KS C 9832 KS C 9835 KS C 9610-4-2 KS C 9610-4-3 CNS15936 Class A
Identification of plastic components	All plastic components that weigh more than 100 g are identified in accordance with ISO 11469 standards.
Laser standards	EN60825-1 IEC60825-1

Software and solutions

Standard	@Remote TotalFlow Adviser
Optional	InfoPrint Manager Ricoh ProcessDirector TotalFlow Prep TotalFlow Production Manager TotalFlow BatchBuilder RICOH Supervisor TotalFlow Producer FusionPro VDP Creator FusionPro Expression Ricoh Auto Color Adjuster OL PlanetPress Connect Fiery Workflow Suite

Security features

Other security features

The OneDFE controller security is based on the EFI Fiery security policy that is compliant with the FS500 Pro system. Contact your local sales company for more information.

Print features

Print speed colour	85 ppm—A4 LEF 49 ppm—A3 SEF With optional Productivity Upgrade Unit Type S14 95 ppm—A4 LEF 53 ppm—A3 SEF
Print speed black and white	85 ppm—A4 LEF 49 ppm—A3 SEF With optional Productivity Upgrade Unit Type S14 95 ppm—A4 LEF 53 ppm—A3 SEF
Printing process	4-drum or 5-drum dry electrostatic transfer system with internal transfer belt
Printing technology	Vertical-cavity surface-emitting laser (VCSEL)
Fusing	Oil-less belt-fusing method
Toner development	PXP-EQ chemical toner, polymerisation
Print resolution	2,400 x 4,800 dpi Note:Engine print resolution is 1,200 x 4,800 dpi.
Duplex printing	Standard
Envelope printing	Supported—with optional Vacuum-Feed LCIT RT5150
Maximum printable area	320 x 480 mm 323 x 1,252 mm—with optional banner sheet tray
Optional printer controller	Color Controller N-50A and Color Controller N-70A System Fiery FS500 Pro Base operating system Windows 10 IoT Enterprise 2019 LTSC CPU Intel i5-8500—N-50A Intel Xeon 4214 (Silver)—N-70A HDD 256 GB SSD SATA for OS; 1 TB HD SATA for data—N-50A 480 GB SSD SATA for OS; 2 TB HD x 2 SATA for data—N-70A Memory (RAM) 8 GB—N-50A 32 GB—N-70A Interfaces Gigabit cross cable Ricoh data transfer unit cable

Connectivity

Interfaces - standard	10Base-T/100Base-Tx (Ethernet) 1000Base-T (Gigabit Ethernet)—for TotalFlow Advisor connection 2.5GBase-T—for Fiery controller connection SD slot x 2— for maintenance only USB 3.0 x 4, USB 2.0 x 2
Interfaces - optional	With Color Controller N-50A 10Base-T/100Base-Tx (Ethernet) 1000Base-T (Gigabit Ethernet) USB 2.0 x 4—rear USB 3.0 x 5—2 ports on the rear, 3 ports on the Fiery Quick Touch operation panel With Color Controller N-70A 10Base-T/100Base-Tx (Ethernet) 1000Base-T (Gigabit Ethernet) USB 3.0 x 7—rear USB 3.0 x 4 ports, x3 ports on the Fiery Quick Touch operation panel
Network protocols - standard	TCP/IP (IPv4, IPv6)
Network protocols - optional	With Color Controller N-50A/N-70A Windows—TCP/IP Mac—TCP/IP, EtherTalk (for font download), Bonjour

Media Handling

Standard input capacity (sheets)	2,500
Maximum input capacity (sheets)	16,200
Maximum output capacity (sheets)	13,000
Paper input configuration - standard	1,000-sheet x 2 paper input tray 1, 500-sheet paper input tray 2, 500-sheet bypass tray, duplex unit
Paper input configuration - optional	1,000-sheet A3/11"x 17" Tray Unit TK5010, 4,400-sheet Vacuum-Feed LCIT RT5150, Bridge Unit BU5010, 500-sheet Multi-Bypass Tray BY5020, 730-sheet Vacuum-Feed Banner Sheet Tray Type S9, 500-sheet Extension Vacuum-Feed Banner Sheet Tray Type S14, 500-sheet Multi-Bypass Banner Sheet Tray Type S9, 3,500-sheet Plockmatic LCT3500, BDT VX 370-1280 Feeder
Paper output configuration - optional	Buffer Pass Unit Type S9, Multi-Folding Unit FD5030, High-Capacity Stacker SK5040, 3,500-sheet Booklet Finisher SR5120, 4,500-sheet Finisher SR5110, Punch Unit PU5030, Trimmer Unit TR5050 for Booklet Finisher SR5120, 400-sheet Cover Interposer CI5040
Paper output configuration - 3rd Party	GBC e-Wire, GBC StreamPunch Plus, Plockmatic HCI3500 High-Capacity Interposer,Plockmatic CT XL, PlockmaticPBM350e, Plockmatic MPS1260 Multi-Purpose Stacker, Plockmatic PBM5035S long sheet stitcher, Plockmatic 5035 long sheet stapler,Plockmatic SBT (Square Back Trimmer),Plockmatic RCT v.3.0
Supported media	Standard paper input tray 1 Plain, Recycled, Prepunched Paper, Textured Paper Standard paper input tray 2 Plain, Recycled, Prepunched Paper, Transparency, Tab Stock, Translucent Paper, Textured Paper Bypass tray Plain, Recycled, Prepunched Paper, Transparency, Tab Stock, Translucent Paper, Envelope Note:High Gloss, Coated: Glossy, Coated: Matte, Textured Paper, and Synthetic Paper can be fed but quality is not guaranteed. OptionalA3/11"x 17" Tray Unit Plain, Recycled, Prepunched Paper, Textured Paper Optional Vacuum-Feed LCIT RT5150 Plain, Recycled, Prepunched Paper, Transparency, Tab Stock, Translucent Paper, Label Paper, Coated: High Gloss, Coated: Glossy, Coated: Matte, Envelope, Textured Paper, Tab Stock: Glossy, Tab Stock: Matte, Tab Stock: High Gloss, Envelope: Glossy, Envelope Matte, Envelope: High Gloss, Carbonless Paper Note:Magnetic Paper, Metallic/Pearl Paper, Clear File Folder, and Synthetic Paper can be fed but quality is not guaranteed. Optional banner sheet tray Plain, Recycled, Prepunched Paper, Coated: High Gloss, Coated: Glossy, Coated: Matte, Textured Paper, Carbonless Paper Note:Magnetic Paper, Label Paper, Transparency, Metallic/Pearl Paper, Clear File Folder, and Synthetic Paper can be fed but quality is not guaranteed.
Maximum paper size	330.2 x 1,260 mm
Media weight (g/m2)	40–470

Supply yields

Supply yields

67,000 sheets—black
67,000 sheets—cyan
67,000 sheets—magenta
67,000 sheets—yellow
19,000 sheets—white
29,200 sheets—neon yellow
29,200 sheets—neon pink
21,500 sheets—invisible red
22,500 sheets—gold
22,500 sheets—silver

Note:CMYK and gold toner yields are measured with the A4/8.75% coverage chart with 50 pages per job. White neon yellow, neon pink, invisible red, and silver toner yields are measured with the A4/15% coverage chart with 50 pages per job.

136,000 sheets per waste toner bottle

Note:Waste toner bottle yield based on A4/8.75% coverage chart with 50 pages per job, 80% colour ratio.

5,000 staples per Type X cartridge for Finisher SR5110 and Booklet Finisher SR5120—side staple
5,000 staples per Type U cartridge for Booklet Finisher SR5120—saddle stitch staple
5,000 staples per Type X refill cartridge for Finisher SR5110 and Booklet Finisher SR5120—side staple
5,000 staples per Type T refill cartridge for Booklet Finisher SR5120—saddle stitch staple

Reliability

Max monthly volume 240,000 prints

Machine life 14,400,000 prints or 5 years, whichever comes first

Duty cycle 1,500,000 prints—85 ppm; 1,700,000 prints—95 ppm

Physical dimensions

Physical dimensions (WxDxH)—mainframe	1,320 x 910 x 1,218 mm
Physical dimensions (WxDxH)—other	1,320 x 910 x 1,816 mm—mainframe with Attention Light 495 x 530 x 175 mm—A3/11"x 17" Tray Unit TK5010 (internal) 1,054 x 730 x 1,000 mm—Vacuum-Feed LCIT RT5150 1,290 x 730 x 1,000 mm—Vacuum-Feed LCIT RT5150 with Vacuum-Feed Banner Sheet Tray Type S9 attached 1,519 x 730 x 1,000 mm—Vacuum-Feed LCIT RT5150 with Extension Vacuum-Feed Banner Sheet Tray Type S14 attached 330 x 730 x 1,000 mm—Bridge Unit BU5010 690 x 561 x 210 mm—Multi-Bypass Tray BY5020 1,290 x 730 x 1,000 mm—Vacuum-Feed Banner Sheet Tray Type S9 1,290 x 730 x 1,302 mm—Vacuum-Feed Banner Sheet Tray Type S9, with cover open 1,519 x 730 x 1,000 mm—Extension Vacuum-Feed Banner Sheet Tray Type S14, when attached to Vacuum-Feed LCIT RT5150 1,090 x 561 x 210 mm—Multi-Bypass Banner Sheet Tray Type S9, when attached to Multi-Bypass Tray BY5020 730 x 1,220 x 1,090 mm—Plockmatic LCT3500 2.0 1,688 x 1,286 x 950 mm—BDT VX 370-1280 Feeder 330 x 730 x 1,010 mm—Buffer Pass Unit Type S9 1,113 x 730 x 1,490 mm—Finisher SR5110 1,334 x 730 x 1,622 mm—Finisher SR5110 with SR5000 Series Output Tray for Banner Sheet Type S6 1,876 x 730 x 1,617 mm—Finisher SR5110 with Extension Output Banner Sheet Tray Type S14 (installed on the upper tray) 1,926 x 730 x 1,617 mm—Finisher SR5110 with Extension Output Banner Sheet Tray Type S14 (installed on the lower tray) 1,113 x 730 x 1,490 mm—Booklet Finisher SR5120 1,334 x 730 x 1,622 mm—Booklet Finisher SR5120 with SR5000 Series Output Tray for Banner Sheet Type S6 1,876 x 730 x 1,617 mm—Booklet Finisher SR5120 with Extension Output Banner Sheet Tray Type S14 (installed on the upper tray) 1,926 x 730 x 1,617 mm—Booklet Finisher SR5120 with Extension Output Banner Sheet Tray Type S14 (installed on the lower tray) 1,115 x 591 x 555 mm—Trimmer Unit TR5050 740 x 730 x 1,350 mm—Cover Interposer CI5040 209 x 730 x 1,000 mm—Multi-Folding Unit FD5030 900 x 730 x 1,010 mm—High-Capacity Stacker SK5040 1,200 x 700 x 1,100 mm—Plockmatic High-Capacity Stacker HCI3500 900 x 680 x 1,060 mm—Plockmatic Multi-Purpose Stacker MPS1260 1,420 x 700 x 970 mm—Plockmatic PBM 5035S/PBM 5035, including stacker
Weight—mainframe	590 kg or less—4-station; 610 kg or less—5-station
Weight—other	10 kg or less—A3/11"x 17" Tray Unit TK5010 230 kg or less—Vacuum-Feed LCIT RT5150 40 kg or less—Bridge Unit BU5010 20 kg or less—Multi-Bypass Tray BY5020 9 kg or less—Vacuum-Feed Banner Sheet Tray Type S9 23 kg or less—Extension Vacuum-Feed Banner Sheet Tray Type S14 9.5 kg or less—Multi-Bypass Banner Sheet Tray Type S9 250 kg—Plockmatic LCT3500 2.0 443 kg—BDT VX 370-1280 Feeder 90 kg or less—Buffer Pass Unit Type S9 135 kg—Finisher SR5110 160 kg—Booklet Finisher SR5120 75 kg—Trimmer Unit TR5050 60 kg—Cover Interposer CI5040 45 kg or less—Multi-Folding Unit FD5030 131 kg or less—High-Capacity Stacker SK5040 135 kg or less—High-Capacity Stacker SK5040 with roll-away cart 250 kg—Plockmatic High-Capacity Stacker HCI3500 65 kg—Plockmatic Multi-Purpose Stacker MPS1260 lift unit 5 kg—Plockmatic Multi-Purpose Stacker MPS1260 docking unit
Minimum space requirements	1,000 mm—front 1,000 mm—left 1,000 mm—right 800 mm—rear

Configuration

Functions	Copy, print, scan
Colour	Yes
Printer controller - standard	GWNX
Printer controller - optional	Fiery colour controller E-28B Fiery colour controller E-48B
Storage	960 GB SSD (480 GB x 2)
Document server	3,000 maximum stored documents 3,000 pages maximum per document 15,000 pages maximum of all stored documents 1–180 days storage period, or no limit
CPU	1.6 GHz
Memory - standard	8 GB (4 GB mainframe + 4 GB Smart Operation Panel)
Operation panel	10.1-inch Smart Operation Panel

Max monthly volume	240,000 prints
Machine life	14,400,000 prints or 5 years, whichever comes first
Duty cycle	1,500,000 prints—85 ppm; 1,700,000 prints—95 ppm
