MXR SERIES
, ,

MXR SERIES

Robot Integration Large-scale Metal 3D Printing
Turn a robot arm into a metal 3D printing system with no inherent size constraints.

Categories: , ,

Large-scale Metal 3D Printing

Turn a robot arm into a metal 3D printing system with no inherent size constraints.

Inspira Technology | Industrial 3D Printer, Manufacturer and Technology

Cladding

Empower any robot arm with new capabilities by converting it into a metal 3D printing system.

EDU1 Pro | Bigger and Better 3D Printer for School and Universities.

Geometry Freedom

Generate intricate components with limitless degrees of freedom.

Specific Applications

Material

Inspira Technology has partnered with major industrial robot brands, allowing for seamless integration for large scale robotic 3D printing. In addition to titanium, the system can also print in a wide range of materials including titanium, aluminum, copper, carbon steel, mild, steel, stainless steel and incone

Large Scale



Part Repair

Produce intricately detailed components with machining tolerances in a single, streamlined process.

Large Scale

The working envelope is bound only by the dimensions of the motion system, without inherent constraints.

EDU1 Pro | Bigger and Better 3D Printer for School and Universities.

Claddinig

Empower any robot arm with new capabilities by converting it into a metal 3D printing system.

Local Manufacturer

Manufactured and designed in Indonesia. Claim your warrantee and support faster.

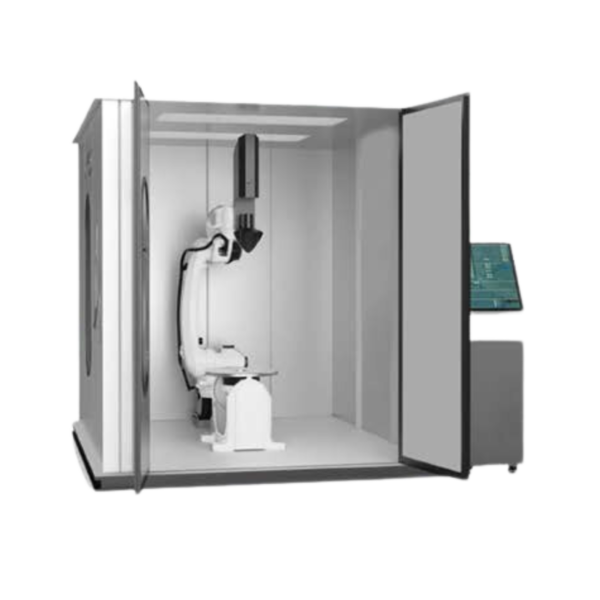

Get to know better, MXR Metal 3D Printer.

The MXR seamlessly integrates with robot arms from any manufacturer and is compatible with various interfaces available in the market.

C3-H22 | High Specification 3D Printer for enthusiasts, professionals and industries

Applications

EDU1 Pro | Bigger and Better 3D Printer for School and Universities.

Combustion Cahmber
SS316L – Aerospace

Size : 110,5 x 110,5 x 170 mm
Weight : 4.88 kg
Print Time : 27h 30m

Inspira Technology | Why Inspira

Glass Mold Core
SS316L – Manufacturing

Size : 158,5 x 79,31 x 144,3 mm
Weight : 6 kg
Print Time : 24h

Inspira Technology | Industrial 3D Printer, Manufacturer and Technology

Watch Bezels
Titanium – Jewelry

Size : 53,37 x 44,59 x 10,85 mm
Weight : (x6) 155,93 g
Print Time : (x6) 5h 40m

EDU1 Pro | Bigger and Better 3D Printer for School and Universities.

Naval Propeller
SS316L – Marine

Size : 600 mm Ø – 250 mm
Weight : 12,1 kg
Print Time : 43h 40m

Inspira Technology | Why Inspira

Engine Manifold
SS316L- Motorsport

Size : 205 x 360 x 473 mm
Weight : 5,2 kg
Print Time : 19h 23m

Inspira Technology | Industrial 3D Printer, Manufacturer and Technology

Spherical Tank
SS316L – Oil & Gas

Size : 500 Ø mm sphere
Weight : 29,6 kg
Print Time : 81h 20m

Specification

Max. Laser Power 6 kW
Laser Type Fiber laser
Laser wavelength 1032 nm
Layer thickness 0.8 – 1.2 mm
Maximum Deposition rate 4 kg/hr
Build volume 5.9′ x 5.9′ x 5.9′
Wire feed stock 0.8 1.2 mm O
Processable materials Iron, nickel, titanium, copper, and aluminum alloys
Shielding Argon or Nitroge
Cooling Active water cooling
Deposition software Meltio
Process control Melt pool temperature (Pyrometer) based closed loop laser power modulation along with wire feeder control
Motion axes 6 + 2
Robot partners ABB, FANUC and YASKAWA
Robotic motion software Meltio, compatible with other software programs
Cell volume 7.5′ x 9′ x 10.6′
Atmosphere control Vacuum pump assisted inert gas environment
Achievable O2 level <10000 ppm in the chamber and lower levels around
the melt pool through local inert gas shielding
Fume management system HEPA FIlter
Total weight 10,000 lbs approx.
