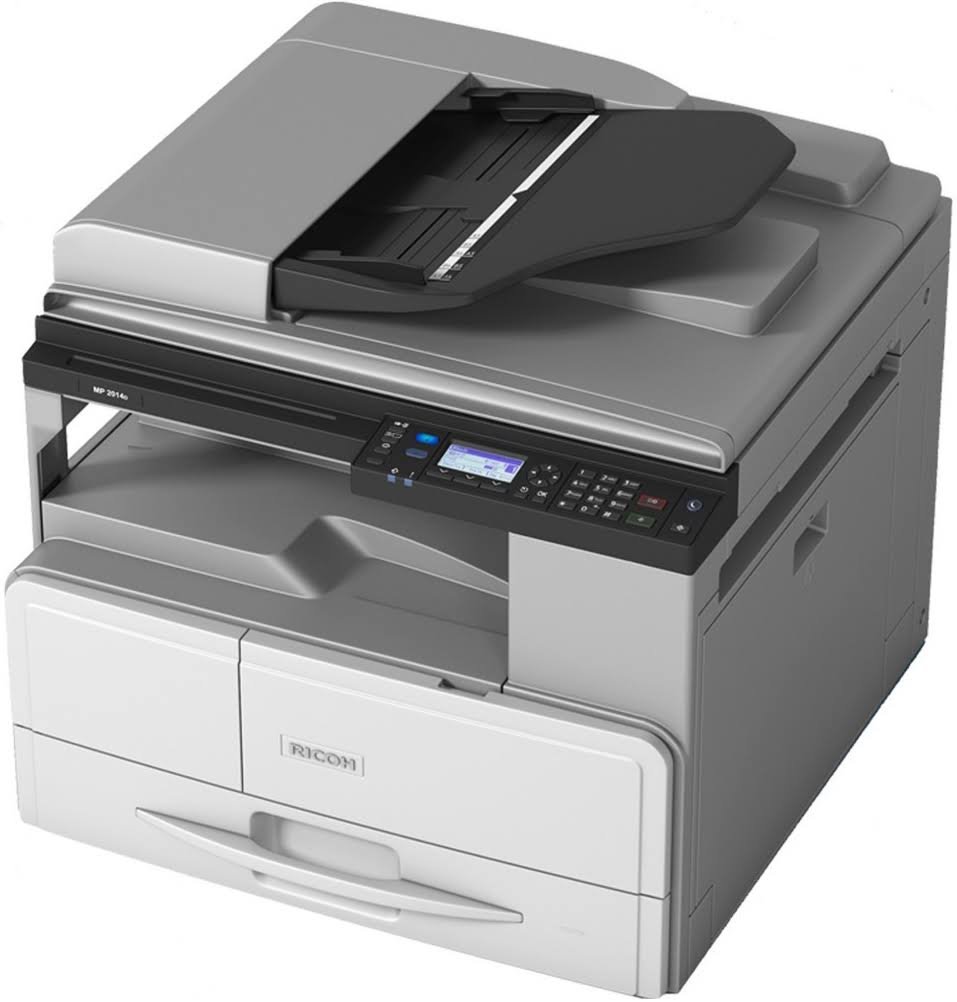

MP 2014AD
MP 2014AD - Image 2
,

MP 2014AD

A3 black and white multifunction printer
– Copy, print, scan
– Prints up to 20 ppm
– 600 x 600 dpi
– ARDF and duplex unit as standard

Categories: ,

Sophisticated features at an economic price

The Ricoh MP 2014AD is a A3 black-and-white MFP with a brisk output speed of 20ppm, providing maximum efficiency for document processing in office. This reliable MFP is designed to provide you with robust performance in demanding office environments.

  1. Excellent productivity
    Print on a variety of paper types via the standard bypass tray, which supports special media such as overhead transparencies and envelopes within a 52–216 g/m2 weight range.
  2. Easy jam removal
    Obtain better access via the mainframe door that opens sideways and handles have also been placed on the fusing unit to facilitate easier removal of jammed paper.
  3. Low TCO
    Low Typical Electricity Consumption (TEC) value of 1.75 kWh and power use during Energy Saver Mode (Sleep Mode) is less than 4 W.
  4. Customisable shortcut keys
    Two hard keys on the left side of the operation panel that can be customised to act as shortcut keys to specific functions such as folder print, voucher copy mode and ID card scan.



Specification

  • Power source 220–240 V, 50–60 Hz
    Power consumption 950 W—Maximum power
    420 W—Operating power
    111 W—Ready Mode
    55 W or less—Low Power Mode
    12.55 W or less—ARDF
    27 W or less—500-sheet paper bank PB2020
    4.0 W—Energy Saver Mode (Sleep Mode)
    Typical Electricity Consumption (TEC) 1.75 kWh
    Warm-up time 33 seconds or less
    Power saving mode 1 minute shift time—Energy Saver Mode (Sleep Mode)
    30 seconds shift time—Low Power Mode
    Recovery time 30 seconds—Energy Saver Mode (Sleep Mode)
    10 seconds—Low Power Mode
  • Standard Web Image Monitor
    Optional Printer as a Service (PaaS)
  • Windows Windows Server 2003
    Windows Server 2003 R2
    Windows Server 2008
    Windows Server 2008 R2
    Windows Vista
    Windows 7
    Windows 8
    Windows 8.1
    Windows Server 2012
    Windows Server 2012 R2
  • Scan speed 200 dpi, A4
    15 ipm—black and white
    6 ipm—colour
    Colour scanning Supported
    Scan resolution 100 x 100 dpi, 150 x 150 dpi, 200 x 200 dpi, 300 x 300 dpi, 600 x 600 dpi; default 200 x 200 dpi
    Scan to folder Protocols
    SMB 1.0

    Security
    Not available

    Resolution
    100 x 100 dpi, 150 x 150 dpi, 200 x 200 dpi, 300 x 300 dpi, 600 x 600 dpi; default 200 x 200 dpi

    Search for client folders
    Not available

    Home folder over LDAP
    Not available

    Maximum client folders per send
    1 folder

    Simultaneous transmission
    Not available

    Maximum group addresses
    Not available

    Input file name
    Not available

    Input subject
    Not available

    Scan to folders file size
    1–5 MB

    Scan to folders file types
    Full colour, greyscale
    JPEG, PDF

    Black and white
    TIFF, PDF

    Program user settings
    Not available

    Resend
    Not available
    TWAIN scanning Scan speed—A4 LEF, 200 x 200 dpi
    Black and white, single-sided
    10 ipm

    Colour, single-sided
    5 ipm

    Scan resolution
    75 x 75 dpi, 100 x 100 dpi, 150 x 150 dpi, 200 x 200 dpi, 300 x 300 dpi, 600 x 600 dpi

    Scan mode
    Full colour, greyscale, black and white

    Image adjustment
    Gamma, sharpness, brightness adjustment, contrast, saturation, hue

    Endorse
    Not available

    Stamp originals
    Not available

    Supported Windows operating systems
    Windows Server 2003, R2
    Windows Vista
    Windows Server 2008, R2
    Windows 7
    Windows 8
    Windows 8.1
    Windows Server 2012, R2
  • Print speed black and white 20 ppm
    Print resolution 600 x 600 dpi
    Printer drivers DDST (GDI)—optional DDST unit Type M16 is required for network printing and scanning
    Duplex printing Supported
  • Copy speed 20 cpm—A4 LEF
    First copy time 10 seconds or less—A4 LEF, Tray 1
    Copy resolution 300 x 600 dpi—standard mode
    600 x 600 dpi—fine mode
    Zoom range 50%–200%
    Duplex copy Supported
    Book copy Not available
    ID card copy Supported—requires DDST unit Type M16 option
  • Interfaces - standard USB 2.0
    Interfaces - optional 10Base-T/100Base-Tx (Ethernet)—available with optional DDST unit Type M16
  • Standard input capacity (sheets) 350
    Maximum input capacity (sheets) 1,350
    Standard output capacity (sheets) 250
    Maximum output capacity (sheets) 250
    Paper input configuration - standard 250-sheet paper input tray, 100-sheet bypass tray, duplex unit, 50-sheet ARDF
    Paper output configuration - standard 250-sheet face-down output tray
    Supported media

    Standard paper input tray
    Thin paper, Plain paper 1, Plain paper 2, Recycled paper, Colour paper, Special paper, Middle thick paper, Printed paper, Pre-printed paper, Pre‑punched paper, Letterhead, Bond paper, Cardstock

    Note:Thin paper only for single-sided printing.

    Bypass tray
    Thin paper, Plain paper 1, Plain paper 2, Recycled paper, Colour paper, Special paper, Middle thick paper, Printed paper, Pre-printed paper, Pre‑punched paper, Letterhead, Bond paper, Cardstock, Thick paper 1, Thick paper 2, Label paper, OHP transparencies, Envelope

    Note:Thin paper and Thick Paper 2 only for single-sided printing.

    Paper bank PB2020
    Plain paper 1, Plain paper 2, Recycled paper, Colour paper, Special paper, Middle thick paper, Printed paper, Pre-printed paper, Pre‑punched paper, Letterhead, Bond paper, Cardstock
    Maximum paper size A3
    Media weight (g/m2) 52–216
  • Functions Copy, print, scan
    Colour No
    Memory - standard 256 MB
    Operation panel 4-line LCD
