IM C2010
IM C2010 - Image 2
IM C2010 - Image 3
,

IM C2010

A3 colour multifunction printer
– Copy, print, scan, optional fax
– Prints up to 20 ppm
– Top environmental performance
– Robust security

Categories: ,

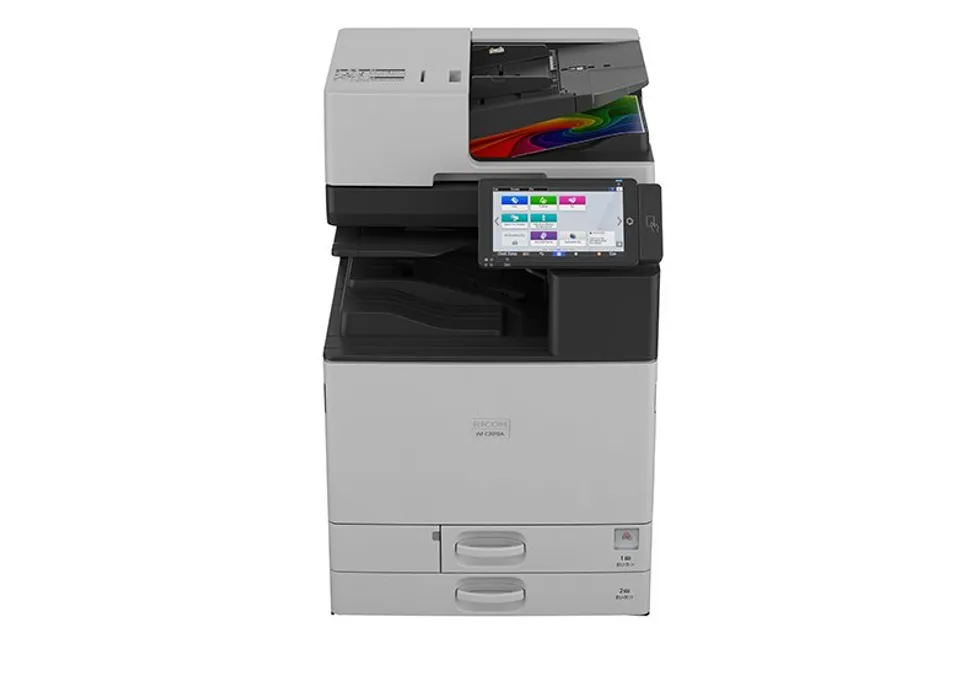

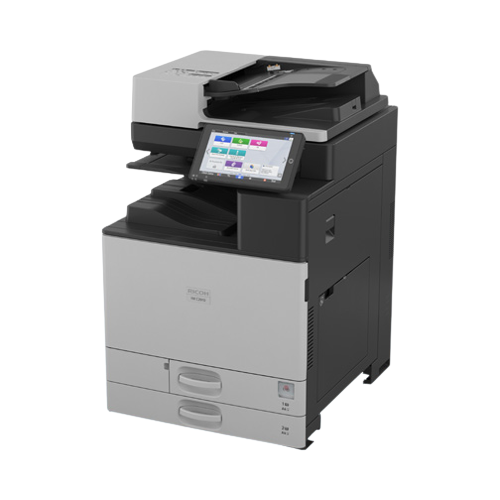

The IM C2010 is an intelligent MFP providing features to meet new digitally-enabled workplace demands, security and compliance challenges, as well as an increased business focus on environmental sustainability.

  • Supports integrated digital workflow processes
  • Latest security features
  • Stay up to date with RICOH Always Current Technology
  • Save costs by reduced energy consumption
  • Outer mainframe uses 50% post-consumer recycled materials

The IM C2010 is equipped with the latest generation 10.1” Smart Operation Panel that provides improved responsiveness with capacitive touch panel technology. It also comes with more memory and is powered by an updated Android OS 10 with enhanced security features.

The MFP also supports a range of optional accessories, including paper input and finishing options, that allow customers to produce quick, professional results.

Specification

  • Power source  220–240 V, 50/60 Hz—Asia Pacific
    110 V, 60 Hz—Taiwan
     Power consumption  1,700 W or less—maximum power, Asia Pacific
    1,584 W or less—maximum power, Taiwan
    411.8 W—operating power, black and white
    465.3 W—operating power, colour
    37.7 W—Ready Mode
    0.3 W—Energy Saver Mode (Sleep Mode)
     Typical Electricity Consumption (TEC)  0.20 kWh
     Warm-up time

    24 seconds
     Recovery time

    From Energy Saver Mode
    6.6 seconds
     Green labels  The Thai Green Label Scheme
     Other environmental features  Eco-friendly indicator, Energy Saver Timer, System Reset Timer
  • Standard @Remote Embedded
    Web Image Monitor
    Optional Streamline NX V3
    GlobalScan NX
    Enhanced Locked Print NX
    Card Authentication Package
    Mobile apps RICOH Smart Device Connector
  • Windows  PCL 5c, PCL 6, and PostScript 3
    Windows 8.1
    Windows 10
    Windows Server 2012
    Windows Server 2012 R2
    Windows Server 2016
    Windows Server 2019
    Windows Server 2022
     Macintosh  MacOS v10.15 or later—PostScript 3 only
     Unix  PCL 5c, PostScript 3
    Sun Solaris, HP-UX, SCO OpenServer, Red Hat Linux, IBM AIX
     SAP  PCL 5c
    R/3, S/4
  • Encryption SSD, PDF, Secure print, WEP, WPA Authentication password Encryption of data sent via Scan to email and Fax forwarding (S/MIME)
    Authentication 802.1x wired authentication Administrator authentication IEEE 802.11i security (WPA2) IPv6 Quota setting User authentication—Windows and LDAP via Kerberos, basic, user code WiFi Protected Setup (WPS) support
  • Fax types G3 fax, Internet fax (T.37), IP fax (T.38), LAN-Fax, Paperless fax, Direct SMTP fax
    Fax circuit PSTN, PBX
    Fax compatibilty ITU-T (CCITT), G3—maximum 3 lines
    Fax modem speed 2,400 bps–33.6 Kbps—G3, standard with automatic shift down
    Fax compression methods MH, MR, MMR, JBIG
    Fax resolution

    Standard mode
    200 x 100 dpi—8 x 3.85 lines/mm

    Detail mode
    200 x 200 dpi—8 x 7.7 lines/mm

    Super Fine mode
    400 x 400 dpi—8 x 15.4 lines/mm
    400 x 400 dpi—16 x 15.4 lines/mm

    Note: Super Fine mode is supported with the optional SAF memory.
    G3 fax transmission speed 3 seconds approximately—JBIG, ITU-T No. 1 chart, TTI off, memory transmission
    3 seconds approximately—MMR, ITU-T No. 1 chart, TTI off, memory transmission
    Fax SAF memory capacity Standard
    4 MB—approximately 320 pages

    With optional SAF memory
    60 MB—approximately 4,800 pages
    Fax memory backup 1 hour
    Quick dials 2,000 numbers
  • Scan speed Via ARDF 80 ppm—200 x 200 dpi, 300 x 300 dpi
    Scan methods Scan to USB, Scan to email, Scan to folder, Scan to URL, Scan to MSB, Scan to FTP, Scan to PDF/A, Scan to digitally signed PDF, Scan to searchable PDF Note: Optional OCR unit is required to support scanning to a searchable PDF.
    Colour scanning Standard
    Scan resolution 100 dpi, 200 dpi (default), 300 dpi, 400 dpi, 600 dpi, 1,200 dpi Note:1,200 dpi scanning is supported only with A5 or smaller paper size.
    Scan to file types Single- and multi-page TIFF Single-page JPEG Single- and multi-page PDF, PDF/A Single- and multi-page high-compression PDF
    Scan to email Protocols SMTP gateway, TCP/IP, POP, IMAP 4 Authentication SMTP authentication, POP before SMTP authentication Scan resolution 100 dpi, 200 dpi (default), 300 dpi, 400 dpi, 600 dpi Scan to email file types Single-page TIFF, JPEG, PDF, PDF/A, high-compression PDF, encrypted PDF, searchable PDF Multi-page TIFF, PDF (default), PDF/A, high-compression PDF, encrypted PDF, searchable PDF Note: Optional OCR unit is required to support scanning to a searchable PDF.
    Scan to folder Protocols SMB, FTP Resolution 100 dpi, 200 dpi (default), 300 dpi, 400 dpi, 600 dpi Search for client folders SMB—browsing directly to the designated folder FTP—by folder name Scan to folder file types Single-page TIFF, JPEG, PDF, PDF/A, high-compression PDF, encrypted PDF, searchable PDF Multi-page TIFF, PDF (default), PDF/A, high-compression PDF, encrypted PDF, searchable PDF Note:Optional OCR unit is required to support scanning to a searchable PDF.
    TWAIN scanning Scan mode Standard, Photo, OCR, Filing Note: Optional OCR unit required for OCR scanning. Scan resolution 100–1,200 dpi Note: 1,200 dpi scanning is supported only with A5 or smaller paper size.
  • Print speed colour 20 ppm
    Print speed black and white 20 ppm
    First print time 4.5 seconds black and white, 7.0 seconds colour
    Print resolution

    1,200 x 1,200 dpi
    Page description languages (PDLs)

    Standard
    PCL 5c, PCL 6,PostScript 3 emulation, PDF Direct emulation

    Optional
    Genuine Adobe PostScript 3, PDF Direct from Adobe
    Printer drivers

    Standard
    PCL 5c, PCL 6,PostScript 3 emulation

    Optional
    Genuine Adobe PostScript 3
    Duplex printing Standard
    Mobile printing Yes
  • Copy speed 20 cpm
    First copy time 5.1 seconds—black and white
    7.4 seconds—colour
    Copy resolution 100, 200, 300, 400, 600 dpi—scanning
    1,200 x 1,200 dpi (maximum)—printing
    Zoom range 25%–400% in 1% steps
    Enlargement ratios 115%, 122%, 141%, 200%, 400%
    Reduction ratios 93%, 87%, 82%, 71%, 61%, 50%, 25%
    Duplex copy Simplex to duplex, duplex to duplex—with ARDF, book to duplex, front and back to duplex
    Book copy Booklet, magazine, layout and booklet
  • Interfaces - standard

    Mainframe
    10Base-T/100Base-Tx (Ethernet)
    1000Base-T (Gigabit Ethernet)
    USB Host Type A—2 ports
    USB Type B—1 port

    Smart Operation Panel
    Bluetooth 5.21
    USB Host Type A—USB Flash memory
    USB Host Type A—optional 1 port for USB keyboard

    1    —Cannot be used for printing
    Interfaces - optional IEEE 802.11 a/b/g/n/ac Interface Unit Type M52
    Device Server Option Type M52 (additional Ethernet/Gigabit Ethernet port)
    Network protocols - standard TCP/IP (IPv4, IPv6)
  • Standard input capacity (sheets) 1,200
    Maximum input capacity (sheets) 2,300
    Standard output capacity (sheets) 500
    250—B4 or larger
    Maximum output capacity (sheets) 1,625
    Paper input configuration - standard 2 x 550-sheet paper trays, 100-sheet bypass tray, 100-sheet ARDF, duplex unit
    Paper output configuration - standard 500-sheet face-down internal output tray
    Supported media

    Tray 1
    Plain paper (paper type not displayed), recycled paper, special paper 1–3, colour paper, letterhead, cardstock, pre-printed paper, bond paper, high gloss coated paper, coated paper

    Tray 2
    Plain paper (paper type not displayed), recycled paper, special paper 1–3, colour paper, letterhead, cardstock, pre-printed paper, bond paper, high gloss coated paper, coated paper, envelope

    Optional trays
    Plain paper (paper type not displayed), recycled paper, special paper 1–3, colour paper, letterhead, cardstock, pre-printed paper, bond paper, high-gloss coated paper, envelope, coated paper

    Bypass tray
    Plain paper (paper type not displayed), recycled paper, special paper 1–3, colour paper, letterhead, cardstock, pre-printed paper, bond paper, high-gloss coated paper, envelope, coated paper, label paper
    Maximum paper size SRA3
    Media weight (g/m2) 52–300
  • Physical dimensions (WxDxH)—mainframe 587 x 701 x 913 mm
    Weight—mainframe 89.7 kg
  • Functions Copy, print, scan, optional fax
    Colour Yes
    HDD 256 GB SSD
    Memory - standard 6 GB—2 GB mainframe + 4 GB Smart Operation Panel
    Operation panel 10.1" Smart Operation Panel
